MXR

Commodity Brief

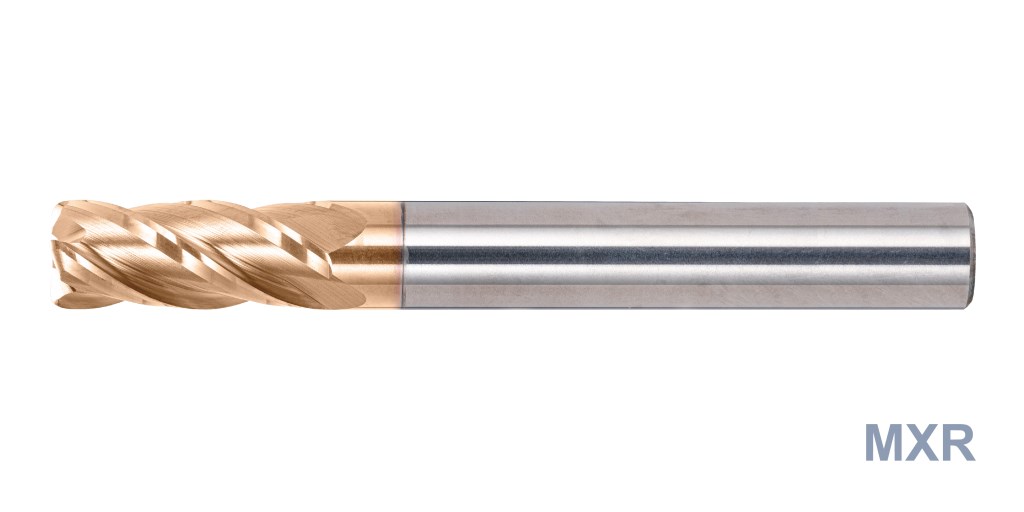

4-Flute Radius End Mill for Hardened Stell

Special groove and cutter design for maximum chip evacuation.

R angle structure is suitable for cutting high hardness materials, wear-resistant and not easy to collapse.

Provides higher load capacity and rigidity during high-performance cutting Stable cutting speed changes.

Description of icons

Product Introduction

Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	Hardened Steel
Carbon Steel	Alloy Steel	Prehardened Steel	Stainless Steel	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material	Heat Resistant Alloy	〜 55HRC	～ 62HRC	～ 70HRC
◎	◎	◎	○	○	○	○					◎

Code No. MXR	(D) Dia.	(R) Radius	(h) Length of Cut	(d) Shank Dia.	(L) Overall Length
4-010-002	1	0.02	3	4	50
4-010-005	1	0.05	3	4	50
4-010-01	1	0.1	3	4	50
4-010-02	1	0.2	3	4	50
4-010-03	1	0.3	3	4	50

4-015-005	1.5	0.05	4	4	50
4-015-01	1.5	0.1	4	4	50
4-015-02	1.5	0.2	4	4	50
4-015-03	1.5	0.3	4	4	50
4-015-05	1.5	0.5	4	4	60

4-020-005	2	0.05	6	4	50
4-020-01	2	0.1	6	4	50
4-020-02	2	0.2	6	4	50
4-020-03	2	0.3	6	4	50
4-020-05	2	0.5	6	4	50

4-025-005	2.5	0.05	7	4	50
4-025-01	2.5	0.1	7	4	50
4-025-02	2.5	0.2	7	4	50
4-025-03	2.5	0.3	7	4	50
4-025-05	2.5	0.5	7	4	50

3-030-005	3	0.05	8	3	50
3-030-01	3	0.1	8	3	50
3-030-02	3	0.2	8	3	50
3-030-03	3	0.3	8	3	50
3-030-05	3	0.5	8	3	50
3-030-10	3	1	8	3	50

4-030-005	3	0.05	8	4	50
4-030-01	3	0.1	8	4	50
4-030-02	3	0.2	8	4	50
4-030-03	3	0.3	8	4	50
4-030-05	3	0.5	8	4	50
4-030-10	3	1	8	4	50

4-040-005	4	0.05	10	4	50
4-040-01	4	0.1	10	4	50
4-040-02	4	0.2	10	4	50
4-040-03	4	0.3	10	4	50
4-040-05	4	0.5	10	4	50
4-040-10	4	1	10	4	50

6-050-005	5	0.05	13	6	50
6-050-01	5	0.1	13	6	50
6-050-02	5	0.2	13	6	50
6-050-03	5	0.3	13	6	50
6-050-05	5	0.5	13	6	50
6-050-10	5	1	13	6	50
6-050-15	5	1.5	13	6	50

6-060-005	6	0.05	15	6	50
6-060-01	6	0.1	15	6	50
6-060-02	6	0.2	15	6	50
6-060-03	6	0.3	15	6	50
6-060-05	6	0.5	15	6	50
6-060-10	6	1	15	6	50
6-060-15	6	1.5	15	6	50
6-060-20	6	2	15	6	50

8-080-02	8	0.2	20	8	60
8-080-03	8	0.3	20	8	60
8-080-05	8	0.5	20	8	60
8-080-10	8	1	20	8	60
8-080-15	8	1.5	20	8	60
8-080-20	8	2	20	8	60
8-080-25	8	2.5	20	8	60
8-080-30	8	3	20	8	60

10-100-02	10	0.2	25	10	75
10-100-03	10	0.3	25	10	75
10-100-05	10	0.5	25	10	75
10-100-10	10	1	25	10	75
10-100-15	10	1.5	25	10	75
10-100-20	10	2	25	10	75
10-100-25	10	2.5	25	10	75
10-100-30	10	3	25	10	75

12-120-02	12	0.2	30	12	75
12-120-03	12	0.3	30	12	75
12-120-05	12	0.5	30	12	75
12-120-10	12	1	30	12	75
12-120-15	12	1.5	30	12	75
12-120-20	12	2	30	12	75
12-120-25	12	2.5	30	12	75
12-120-30	12	3	30	12	75
