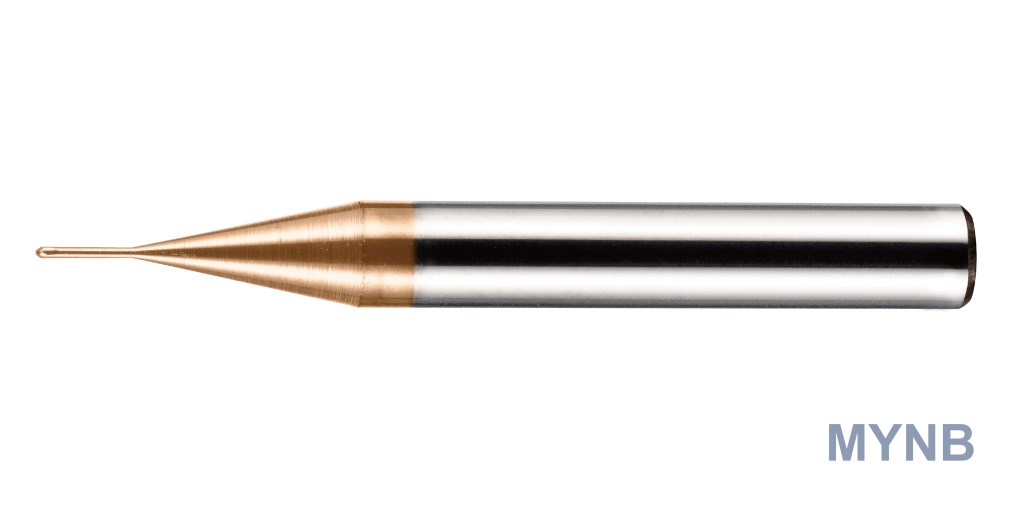

MYNB-2-Flute Long-Neck Micro Ball End Mill for Hardened Steel

Commodity Brief

Recommended for fine 3D finishing in prehardened and hardened steels, including small contours at greater reach or close to adjacent walls.
Two flutes, a 30° helix and TiSiN coating are paired with a short cutting section and reduced neck for wall clearance in extended-reach work. Each diameter offers multiple effective lengths.
⌀0.1–0.9 mm; 86 sizes.

Description of icons

Product Introduction

Carbon steel	Alloy steel	Pre-hardened steel	Stainless steel	Aluminum alloy	Copper	Resin	Graphite	Hard and brittle materials	Heat-resistant alloys	Workpiece Hardness
Carbon steel	Alloy steel	Pre-hardened steel	Stainless steel	Aluminum alloy	Copper	Resin	Graphite	Hard and brittle materials	Heat-resistant alloys	50HRC	55HRC	62HRC
		◎	○						○			◎

Code No. MYNB	(R) Radius	(D) Dia.	(h) Length of Cut	(h1) Effective Length	(d2) Neck Dia.	(Y) Shank Taper Angle	(d) Shank Dia.	(L) Overall Length
4-010-003	0.05	0.1	0.07	0.3	0.075	12	4	50
4-010-005	0.05	0.1	0.07	0.5	0.075	12	4	50
4-010-0075	0.05	0.1	0.07	0.75	0.075	12	4	50
4-010-01	0.05	0.1	0.07	1	0.075	12	4	50
4-015-003	0.075	0.15	0.1	0.3	0.12	12	4	50
4-015-006	0.075	0.15	0.1	0.6	0.12	12	4	50
4-015-01	0.075	0.15	0.1	1	0.12	12	4	50
4-015-015	0.075	0.15	0.1	1.5	0.12	12	4	50
4-020-005	0.1	0.2	0.15	0.5	0.17	12	4	50
4-020-0075	0.1	0.2	0.15	0.75	0.17	12	4	50
4-020-01	0.1	0.2	0.15	1	0.17	12	4	50
4-020-012	0.1	0.2	0.15	1.2	0.17	12	4	50
4-020-015	0.1	0.2	0.15	1.5	0.17	12	4	50
4-020-02	0.1	0.2	0.15	2	0.17	12	4	50
4-030-006	0.15	0.3	0.2	0.6	0.27	12	4	50
4-030-0075	0.15	0.3	0.2	0.75	0.27	12	4	50
4-030-01	0.15	0.3	0.2	1	0.27	12	4	50
4-030-015	0.15	0.3	0.2	1.5	0.27	12	4	50
4-030-02	0.15	0.3	0.2	2	0.27	12	4	50
4-030-025	0.15	0.3	0.2	2.5	0.27	12	4	50
4-030-03	0.15	0.3	0.2	3	0.27	12	4	50
4-040-008	0.2	0.4	0.3	0.8	0.36	12	4	50
4-040-012	0.2	0.4	0.3	1.2	0.36	12	4	50
4-040-015	0.2	0.4	0.3	1.5	0.36	12	4	50
4-040-02	0.2	0.4	0.3	2	0.36	12	4	50
4-040-025	0.2	0.4	0.3	2.5	0.36	12	4	50
4-040-03	0.2	0.4	0.3	3	0.36	12	4	50
4-040-035	0.2	0.4	0.3	3.5	0.36	12	4	50
4-040-04	0.2	0.4	0.3	4	0.36	12	4	50
4-040-05	0.2	0.4	0.3	5	0.36	12	4	50
4-040-06	0.2	0.4	0.3	6	0.36	12	4	50
4-040-07	0.2	0.4	0.3	7	0.36	12	4	50
4-040-08	0.2	0.4	0.3	8	0.36	12	4	50
4-050-01	0.25	0.5	0.35	1	0.45	12	4	50
4-050-015	0.25	0.5	0.35	1.5	0.45	12	4	50
4-050-02	0.25	0.5	0.35	2	0.45	12	4	50
4-050-025	0.25	0.5	0.35	2.5	0.45	12	4	50
4-050-03	0.25	0.5	0.35	3	0.45	12	4	50
4-050-035	0.25	0.5	0.35	3.5	0.45	12	4	50
4-050-04	0.25	0.5	0.35	4	0.45	12	4	50
4-050-045	0.25	0.5	0.35	4.5	0.45	12	4	50
4-050-05	0.25	0.5	0.35	5	0.45	12	4	50
4-050-06	0.25	0.5	0.35	6	0.45	12	4	50
4-050-07	0.25	0.5	0.35	7	0.45	12	4	50
4-050-08	0.25	0.5	0.35	8	0.45	12	4	50
4-050-10	0.25	0.5	0.35	10	0.45	12	4	50
4-060-012	0.3	0.6	0.45	1.2	0.55	12	4	50
4-060-015	0.3	0.6	0.45	1.5	0.55	12	4	50
4-060-02	0.3	0.6	0.45	2	0.55	12	4	50
4-060-025	0.3	0.6	0.45	2.5	0.55	12	4	50
4-060-03	0.3	0.6	0.45	3	0.55	12	4	50
4-060-035	0.3	0.6	0.45	3.5	0.55	12	4	50
4-060-04	0.3	0.6	0.45	4	0.55	12	4	50
4-060-045	0.3	0.6	0.45	4.5	0.55	12	4	50
4-060-05	0.3	0.6	0.45	5	0.55	12	4	50
4-060-055	0.3	0.6	0.45	5.5	0.55	12	4	50
4-060-06	0.3	0.6	0.45	6	0.55	12	4	50
4-060-08	0.3	0.6	0.45	8	0.55	12	4	50
4-060-10	0.3	0.6	0.45	10	0.55	12	4	50
4-060-12	0.3	0.6	0.45	12	0.55	12	4	50
4-070-02	0.35	0.7	0.5	2	0.65	12	4	50
4-070-04	0.35	0.7	0.5	4	0.65	12	4	50
4-070-06	0.35	0.7	0.5	6	0.65	12	4	50
4-070-08	0.35	0.7	0.5	8	0.65	12	4	50
4-070-10	0.35	0.7	0.5	10	0.65	12	4	50
4-070-12	0.35	0.7	0.5	12	0.65	12	4	50
4-070-14	0.35	0.7	0.5	14	0.65	12	4	50
4-080-02	0.4	0.8	0.6	2	0.75	12	4	50
4-080-03	0.4	0.8	0.6	3	0.75	12	4	50
4-080-04	0.4	0.8	0.6	4	0.75	12	4	50
4-080-05	0.4	0.8	0.6	5	0.75	12	4	50
4-080-06	0.4	0.8	0.6	6	0.75	12	4	50
4-080-07	0.4	0.8	0.6	7	0.75	12	4	50
4-080-08	0.4	0.8	0.6	8	0.75	12	4	50
4-080-10	0.4	0.8	0.6	10	0.75	12	4	50
4-080-12	0.4	0.8	0.6	12	0.75	12	4	50
4-080-14	0.4	0.8	0.6	14	0.75	12	4	50
4-080-16	0.4	0.8	0.6	16	0.75	12	4	50
4-090-02	0.45	0.9	0.65	2	0.85	12	4	50
4-090-04	0.45	0.9	0.65	4	0.85	12	4	50
4-090-06	0.45	0.9	0.65	6	0.85	12	4	50
4-090-08	0.45	0.9	0.65	8	0.85	12	4	50
4-090-10	0.45	0.9	0.65	10	0.85	12	4	50
4-090-12	0.45	0.9	0.65	12	0.85	12	4	50
4-090-14	0.45	0.9	0.65	14	0.85	12	4	50
4-090-16	0.45	0.9	0.65	16	0.85	12	4	50
