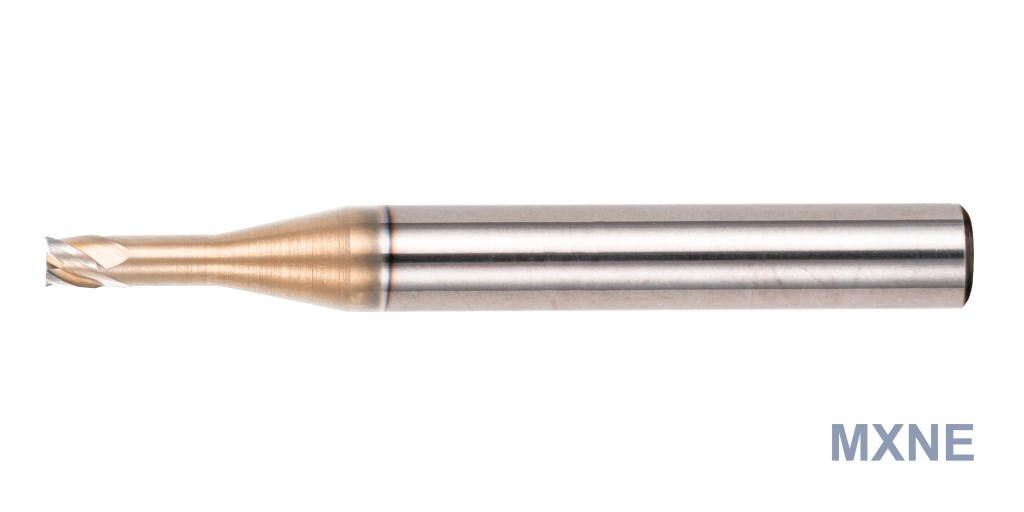

MXNE-4-Flute Long-Neck End Mill for Hardened Steel

Commodity Brief

For sidewalls, narrow slots and stepped floors at greater reach in prehardened steel and hardened steel at the 62 HRC level.
The TiSiN-coated, four-flute design has a 35° helix. A 1×D cutting length and reduced neck extend tool-tip access while providing clearance past the upper wall.
⌀1–8 mm; 91 sizes.

Description of icons

Product Introduction

Carbon steel	Alloy steel	Pre-hardened steel	Stainless steel	Aluminum alloy	Copper	Resin	Graphite	Hard and brittle materials	Heat-resistant alloys	Workpiece Hardness
Carbon steel	Alloy steel	Pre-hardened steel	Stainless steel	Aluminum alloy	Copper	Resin	Graphite	Hard and brittle materials	Heat-resistant alloys	50HRC	55HRC	62HRC
		◎	○						○			◎

Code No. MXNE	(D) Dia.	(h) Length of Cut	(h1) Effective Length	(d2) Neck Dia.	(Y) Shank Taper Angle	(d) Shank Dia.	(L) Overall Length
4-010-02	1	1	2	0.95	12	4	50
4-010-03	1	1	3	0.95	12	4	50
4-010-04	1	1	4	0.95	12	4	50
4-010-06	1	1	6	0.95	12	4	50
4-010-07	1	1	7	0.95	12	4	50
4-010-08	1	1	8	0.95	12	4	50
4-010-10	1	1	10	0.95	12	4	50
4-010-12	1	1	12	0.95	12	4	50
4-010-14	1	1	14	0.95	12	4	50
4-010-16	1	1	16	0.95	12	4	50
4-011-06	1.1	1.1	6	1.05	12	4	50
4-011-10	1.1	1.1	10	1.05	12	4	50
4-011-16	1.1	1.1	16	1.05	12	4	50
4-012-06	1.2	1.2	6	1.15	12	4	50
4-012-08	1.2	1.2	8	1.15	12	4	50
4-012-10	1.2	1.2	10	1.15	12	4	50
4-012-12	1.2	1.2	12	1.15	12	4	50
4-012-14	1.2	1.2	14	1.15	12	4	50
4-012-16	1.2	1.2	16	1.15	12	4	50
4-013-06	1.3	1.3	6	1.25	12	4	50
4-013-10	1.3	1.3	10	1.25	12	4	50
4-013-12	1.3	1.3	12	1.25	12	4	50
4-013-16	1.3	1.3	16	1.25	12	4	50
4-014-06	1.4	1.4	6	1.35	12	4	50
4-014-08	1.4	1.4	8	1.35	12	4	50
4-014-10	1.4	1.4	10	1.35	12	4	50
4-014-12	1.4	1.4	12	1.35	12	4	50
4-014-14	1.4	1.4	14	1.35	12	4	50
4-014-16	1.4	1.4	16	1.35	12	4	50
4-015-03	1.5	1.5	3	1.45	12	4	50
4-015-04	1.5	1.5	4	1.45	12	4	50
4-015-06	1.5	1.5	6	1.45	12	4	50
4-015-08	1.5	1.5	8	1.45	12	4	50
4-015-10	1.5	1.5	10	1.45	12	4	50
4-015-12	1.5	1.5	12	1.45	12	4	50
4-015-14	1.5	1.5	14	1.45	12	4	50
4-015-16	1.5	1.5	16	1.45	12	4	50
4-016-06	1.6	1.6	6	1.55	12	4	50
4-016-08	1.6	1.6	8	1.55	12	4	50
4-016-10	1.6	1.6	10	1.55	12	4	50
4-016-12	1.6	1.6	12	1.55	12	4	50
4-016-14	1.6	1.6	14	1.55	12	4	50
4-016-16	1.6	1.6	16	1.55	12	4	50
4-017-06	1.7	1.7	6	1.65	12	4	50
4-017-14	1.7	1.7	14	1.65	12	4	50
4-018-06	1.8	1.8	6	1.74	12	4	50
4-018-08	1.8	1.8	8	1.74	12	4	50
4-018-10	1.8	1.8	10	1.74	12	4	50
4-018-12	1.8	1.8	12	1.74	12	4	50
4-018-14	1.8	1.8	14	1.74	12	4	50
4-018-16	1.8	1.8	16	1.74	12	4	50
4-019-06	1.9	1.9	6	1.84	12	4	50
4-019-16	1.9	1.9	16	1.84	12	4	50
4-020-06	2	2	6	1.94	12	4	50
4-020-08	2	2	8	1.94	12	4	50
4-020-10	2	2	10	1.94	12	4	50
4-020-12	2	2	12	1.94	12	4	50
4-020-14	2	2	14	1.94	12	4	50
4-020-16	2	2	16	1.94	12	4	50
4-025-08	2.5	2.5	8	2.4	12	4	50
4-025-12	2.5	2.5	12	2.4	12	4	50
4-025-16	2.5	2.5	16	2.4	12	4	50
6-030-08	3	3	8	2.85	15	6	50
6-030-12	3	3	12	2.85	15	6	50
6-030-16	3	3	16	2.85	15	6	50
6-030-20	3	3	20	2.85	15	6	75
6-030-25	3	3	25	2.85	15	6	75
6-030-30	3	3	30	2.85	15	6	75
6-030-35	3	3	35	2.85	15	6	75
6-035-15	3.5	3.5	15	3.35	15	6	50
6-035-20	3.5	3.5	20	3.35	15	6	75
6-035-25	3.5	3.5	25	3.35	15	6	75
6-035-30	3.5	3.5	30	3.35	15	6	75
6-035-35	3.5	3.5	35	3.35	15	6	75
6-040-12	4	4	12	3.8	15	6	50
6-040-16	4	4	16	3.8	15	6	50
6-040-20	4	4	20	3.8	15	6	75
6-040-25	4	4	25	3.8	15	6	75
6-040-30	4	4	30	3.8	15	6	75
6-040-35	4	4	35	3.8	15	6	75
6-050-16	5	5	16	4.8	15	6	50
6-050-20	5	5	20	4.8	15	6	75
6-050-25	5	5	25	4.8	15	6	75
6-050-30	5	5	30	4.8	15	6	75
6-050-35	5	5	35	4.8	15	6	75
6-060-20	6	6	20	5.8	-	6	75
6-060-25	6	6	25	5.8	-	6	75
6-060-30	6	6	30	5.8	-	6	75
6-060-35	6	6	35	5.8	-	6	75
8-080-30	8	8	30	7.8	-	8	75
8-080-35	8	8	35	7.8	-	8	75
