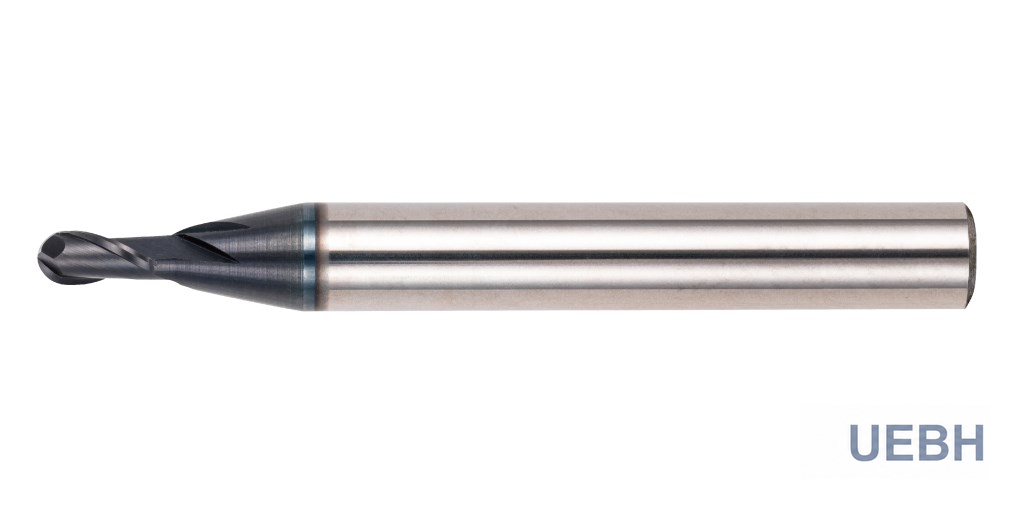

UEBH-2-Flute Long-Shank Ball End Mill
Commodity Brief
Recommended for 3D contour and radius milling in carbon, alloy and prehardened steels, including mold surfaces and contoured parts.
AlTiCrN-coated, with two flutes and a 30° helix. The long shank is paired with a 2×D cutting length for contour milling that requires additional tool overhang.
⌀1–12 mm; 31 sizes.
Product Introduction
| Carbon steel | Alloy steel | Pre-hardened steel | Stainless steel | Aluminum alloy | Copper | Resin | Graphite | Hard and brittle materials | Heat-resistant alloys | Workpiece Hardness |
|---|
| 50HRC | 55HRC | 62HRC |
|---|
| ◎ | ◎ | ◎ | ○ | ○ | ○ | ○ | | | | | ◎ | |
Code No.
UEBH | (R)
Radius | (D)
Dia. | (h)
Length of Cut | (Y)
Shank Taper Angle | (d)
Shank Dia. | (L)
Overall Length |
|---|
| 4010 | 0.5 | 1 | 2 | 12 | 4 | 75 |
| 6010 | 0.5 | 1 | 2 | 15 | 6 | 75 |
| 4015 | 0.75 | 1.5 | 3 | 12 | 4 | 75 |
| 6015 | 0.75 | 1.5 | 3 | 15 | 6 | 75 |
| 4020 | 1 | 2 | 4 | 12 | 4 | 75 |
| 6020 | 1 | 2 | 4 | 15 | 6 | 75 |
| 4025 | 1.25 | 2.5 | 5 | 12 | 4 | 75 |
| 6025 | 1.25 | 2.5 | 5 | 15 | 6 | 75 |
| 3030 | 1.5 | 3 | 6 | 12 | 3 | 75 |
| 4030 | 1.5 | 3 | 6 | 12 | 4 | 75 |
| 6030 | 1.5 | 3 | 6 | 15 | 6 | 75 |
| 4035 | 1.75 | 3.5 | 7 | 12 | 4 | 75 |
| 6035 | 1.75 | 3.5 | 7 | 15 | 6 | 75 |
| 4040 | 2 | 4 | 8 | - | 4 | 75 |
| 6040 | 2 | 4 | 8 | 15 | 6 | 75 |
| 6045 | 2.25 | 4.5 | 9 | 15 | 6 | 75 |
| 6050 | 2.5 | 5 | 10 | 15 | 6 | 75 |
| 6055 | 2.75 | 5.5 | 11 | 15 | 6 | 75 |
| 6060 | 3 | 6 | 12 | - | 6 | 75 |
| 8065 | 3.25 | 6.5 | 13 | 15 | 8 | 75 |
| 8070 | 3.5 | 7 | 14 | 15 | 8 | 75 |
| 8075 | 3.75 | 7.5 | 15 | 15 | 8 | 75 |
| 8080 | 4 | 8 | 16 | - | 8 | 75 |
| 10085 | 4.25 | 8.5 | 17 | 15 | 10 | 100 |
| 10090 | 4.5 | 9 | 18 | 15 | 10 | 100 |
| 10095 | 4.75 | 9.5 | 19 | 15 | 10 | 100 |
| 10100 | 5 | 10 | 20 | - | 10 | 100 |
| 12105 | 5.25 | 10.5 | 21 | 15 | 12 | 100 |
| 12110 | 5.5 | 11 | 22 | 15 | 12 | 100 |
| 12115 | 5.75 | 11.5 | 23 | 15 | 12 | 100 |
| 12120 | 6 | 12 | 24 | - | 12 | 100 |
