UXR-4-Flute Corner Radius End Mill

Commodity Brief

Recommended for wall profiling, slotting and floor-to-wall fillets in carbon, alloy and prehardened steels.

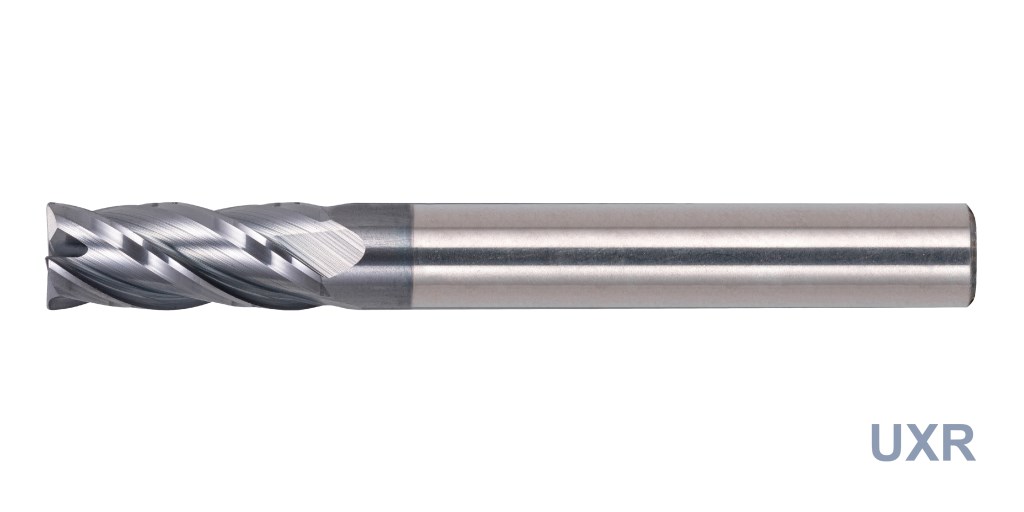

Four flutes, a 35° helix and AlTiCrN coating are combined with a flat end and radiused corners for floors and their filleted transitions to side walls.
⌀1–12 mm; 75 sizes.

Description of icons

Product Introduction

Carbon steel	Alloy steel	Pre-hardened steel	Stainless steel	Aluminum alloy	Copper	Resin	Graphite	Hard and brittle materials	Heat-resistant alloys	Workpiece Hardness
Carbon steel	Alloy steel	Pre-hardened steel	Stainless steel	Aluminum alloy	Copper	Resin	Graphite	Hard and brittle materials	Heat-resistant alloys	50HRC	55HRC	62HRC
◎	◎	◎	○	○	○	○					◎

Code No. UXR	(R) Radius	(D) Dia.	(h) Length of Cut	(Y) Shank Taper Angle	(d) Shank Dia.	(L) Overall Length
4-010-01	0.1	1	3	12	4	50
4-010-02	0.2	1	3	12	4	50
4-010-03	0.3	1	3	12	4	50
4-015-01	0.1	1.5	4	12	4	50
4-015-02	0.2	1.5	4	12	4	50
4-015-03	0.3	1.5	4	12	4	50
4-015-05	0.5	1.5	4	12	4	50
4-020-01	0.1	2	6	12	4	50
4-020-02	0.2	2	6	12	4	50
4-020-03	0.3	2	6	12	4	50
4-020-05	0.5	2	6	12	4	50
4-025-01	0.1	2.5	7	12	4	50
4-025-02	0.2	2.5	7	12	4	50
4-025-03	0.3	2.5	7	12	4	50
4-025-05	0.5	2.5	7	12	4	50
3-030-01	0.1	3	8	-	3	50
3-030-02	0.2	3	8	-	3	50
3-030-03	0.3	3	8	-	3	50
3-030-05	0.5	3	8	-	3	50
3-030-10	1	3	8	-	3	50
4-030-01	0.1	3	8	12	4	50
4-030-02	0.2	3	8	12	4	50
4-030-03	0.3	3	8	12	4	50
4-030-05	0.5	3	8	12	4	50
4-030-10	1	3	8	12	4	50
4-035-01	0.1	3.5	9	12	4	50
4-035-02	0.2	3.5	9	12	4	50
4-035-03	0.3	3.5	9	12	4	50
4-035-05	0.5	3.5	9	12	4	50
4-035-10	1	3.5	9	12	4	50
4-040-01	0.1	4	10	-	4	50
4-040-02	0.2	4	10	-	4	50
4-040-03	0.3	4	10	-	4	50
4-040-05	0.5	4	10	-	4	50
4-040-10	1	4	10	-	4	50
6-050-01	0.1	5	13	15	6	50
6-050-02	0.2	5	13	15	6	50
6-050-03	0.3	5	13	15	6	50
6-050-05	0.5	5	13	15	6	50
6-050-10	1	5	13	15	6	50
6-050-15	1.5	5	13	15	6	50
6-060-01	0.1	6	15	-	6	50
6-060-02	0.2	6	15	-	6	50
6-060-03	0.3	6	15	-	6	50
6-060-05	0.5	6	15	-	6	50
6-060-10	1	6	15	-	6	50
6-060-15	1.5	6	15	-	6	50
6-060-20	2	6	15	-	6	50
8-080-01	0.1	8	20	-	8	60
8-080-02	0.2	8	20	-	8	60
8-080-03	0.3	8	20	-	8	60
8-080-05	0.5	8	20	-	8	60
8-080-10	1	8	20	-	8	60
8-080-15	1.5	8	20	-	8	60
8-080-20	2	8	20	-	8	60
8-080-25	2.5	8	20	-	8	60
8-080-30	3	8	20	-	8	60
10-100-01	0.1	10	25	-	10	75
10-100-02	0.2	10	25	-	10	75
10-100-03	0.3	10	25	-	10	75
10-100-05	0.5	10	25	-	10	75
10-100-10	1	10	25	-	10	75
10-100-15	1.5	10	25	-	10	75
10-100-20	2	10	25	-	10	75
10-100-25	2.5	10	25	-	10	75
10-100-30	3	10	25	-	10	75
12-120-01	0.1	12	30	-	12	75
12-120-02	0.2	12	30	-	12	75
12-120-03	0.3	12	30	-	12	75
12-120-05	0.5	12	30	-	12	75
12-120-10	1	12	30	-	12	75
12-120-15	1.5	12	30	-	12	75
12-120-20	2	12	30	-	12	75
12-120-25	2.5	12	30	-	12	75
12-120-30	3	12	30	-	12	75
